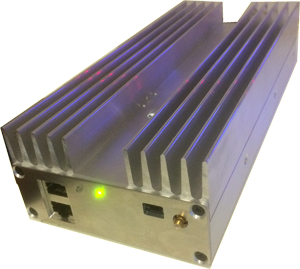

Heights technology has range of affordable high ruggedness LDMOS based Power Amplifier Modules that are ideal for civil avionics, communications, networks, radar, broadcast, industrial, scientific, and medical applications.
Key features:
- Modules size: 250mm x 115mm x 55mm.
- Serial data communication
- Pulsed or CW operation
- High VSWR tolerance
- 50V DC operation
- 1 to 500MHz operation
Model |
Frequency (MHz) |
Bandwidth (MHz) |
Duty cycle (%) |
Gain (dB) |
PeakPower (W) |
Harmonic (<dBc) |
VSWR |
HT0400520 |
27 |
3 |
20 |
25 |
1000 |
-15 |
20:1 |
HT0300520 |
40 |
4 |
20 |
25 |
1000 |
-15 |
20:1 |
HT0153020 |
1-30 |
30 |
20 |
23 |
800 |
-10 |
20:1 |
HT0982020 |
87.5-108 |
20 |
20 |
22 |
1000 |
-15 |
20:1 |
HT1460420 |
146-148 |
4 |
20 |
22 |
1000 |
-15 |
20:1 |
HT3521520 |
352 |
15 |
20 |
20 |
1000 |
-15 |
20:1 |
HT5002520 |
500 |
25 |
20 |
18 |
800 |
-15 |
20:1 |
Talk to us if you would like higher peak power system. We can work with you to customise for higher power system by combining multiple modules.
If your desired frequency is not listed above, please contact us. We can tune the amplifier to your requirement. |
